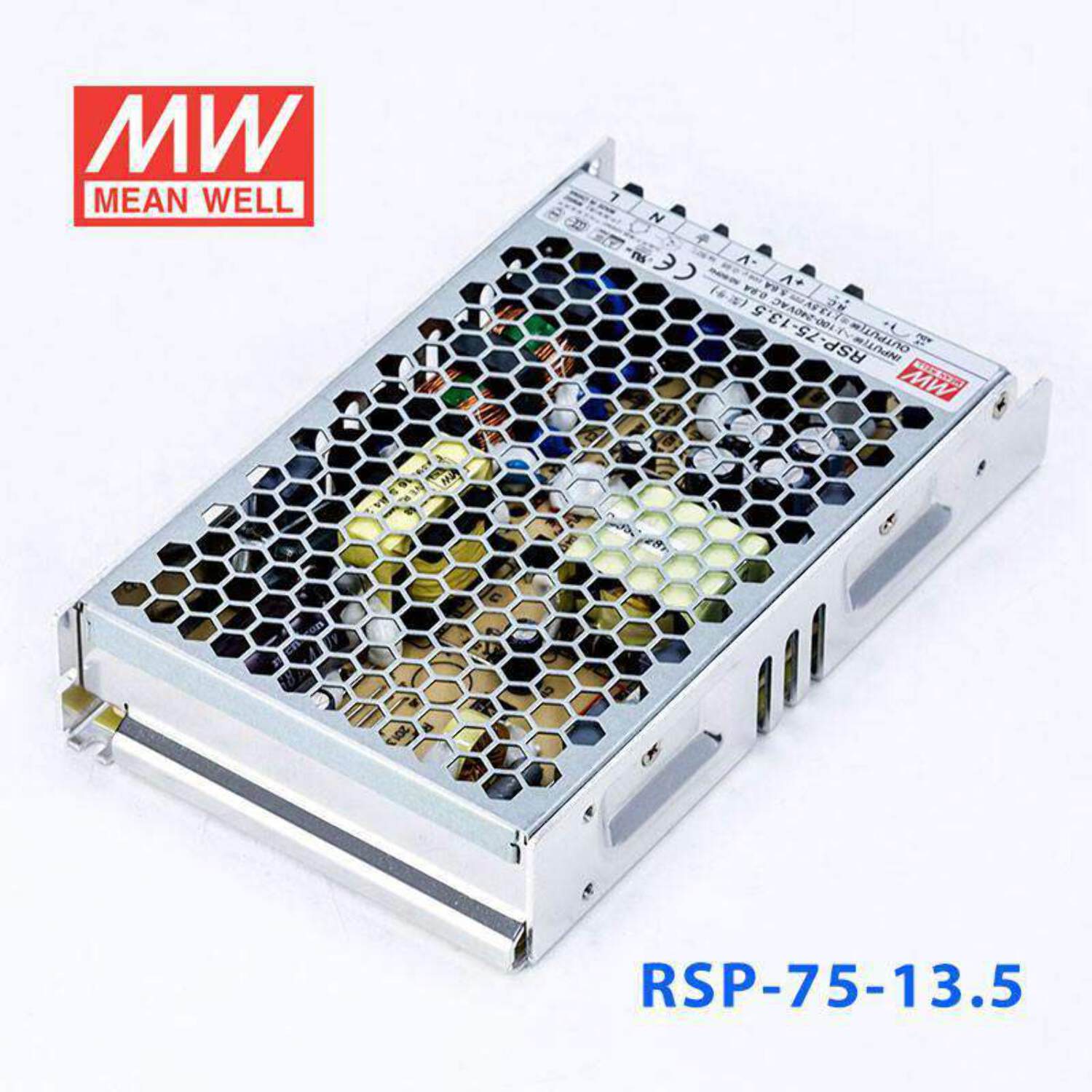

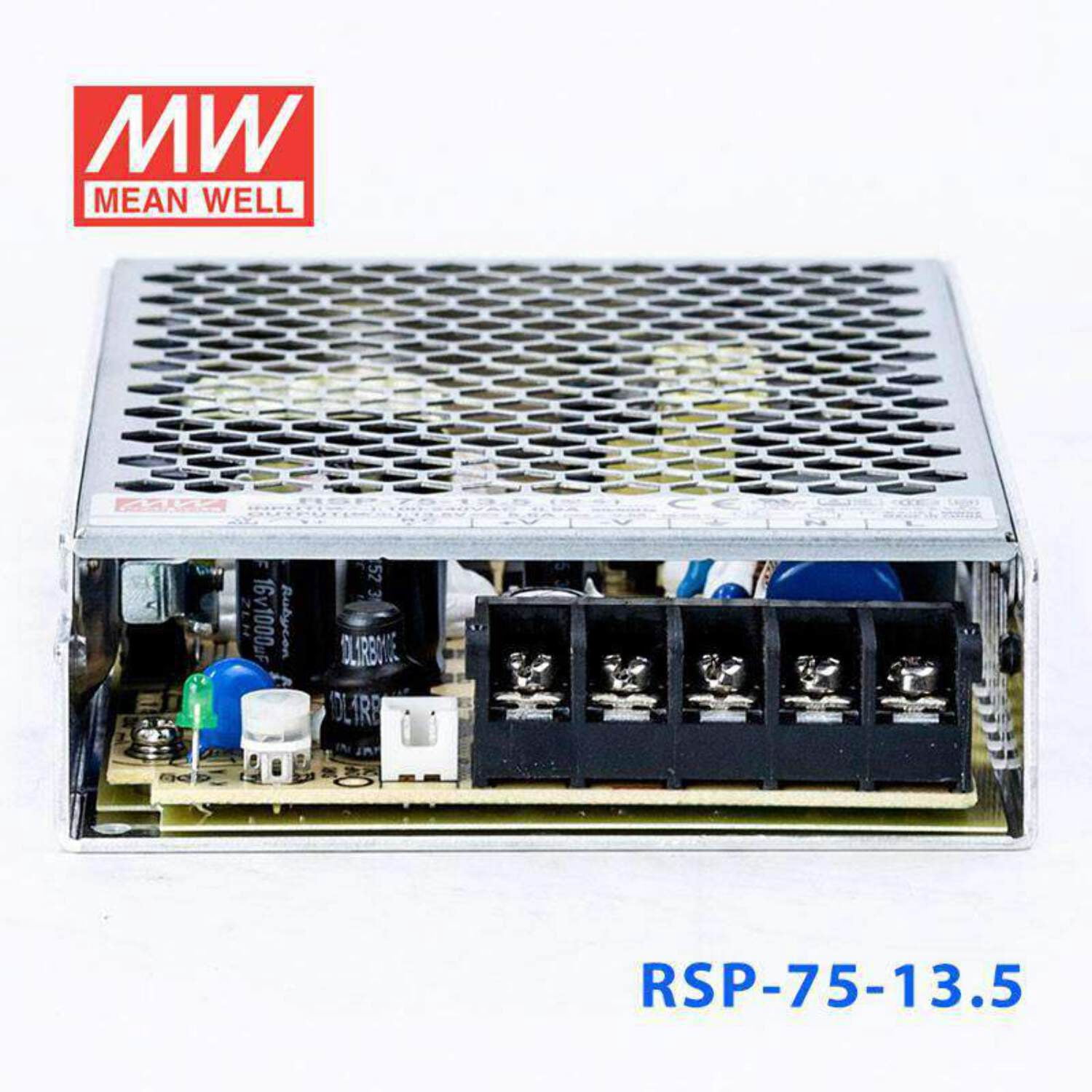

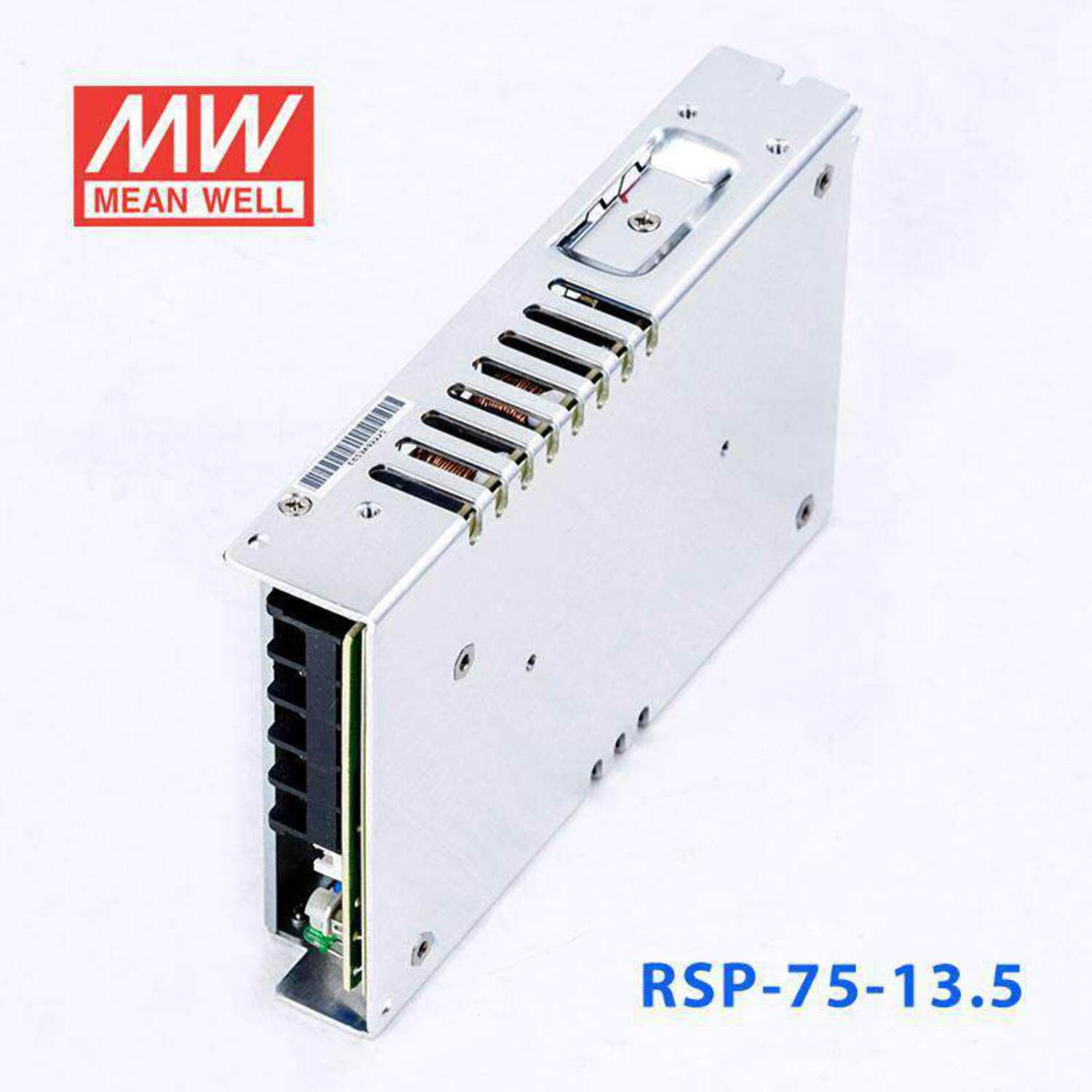

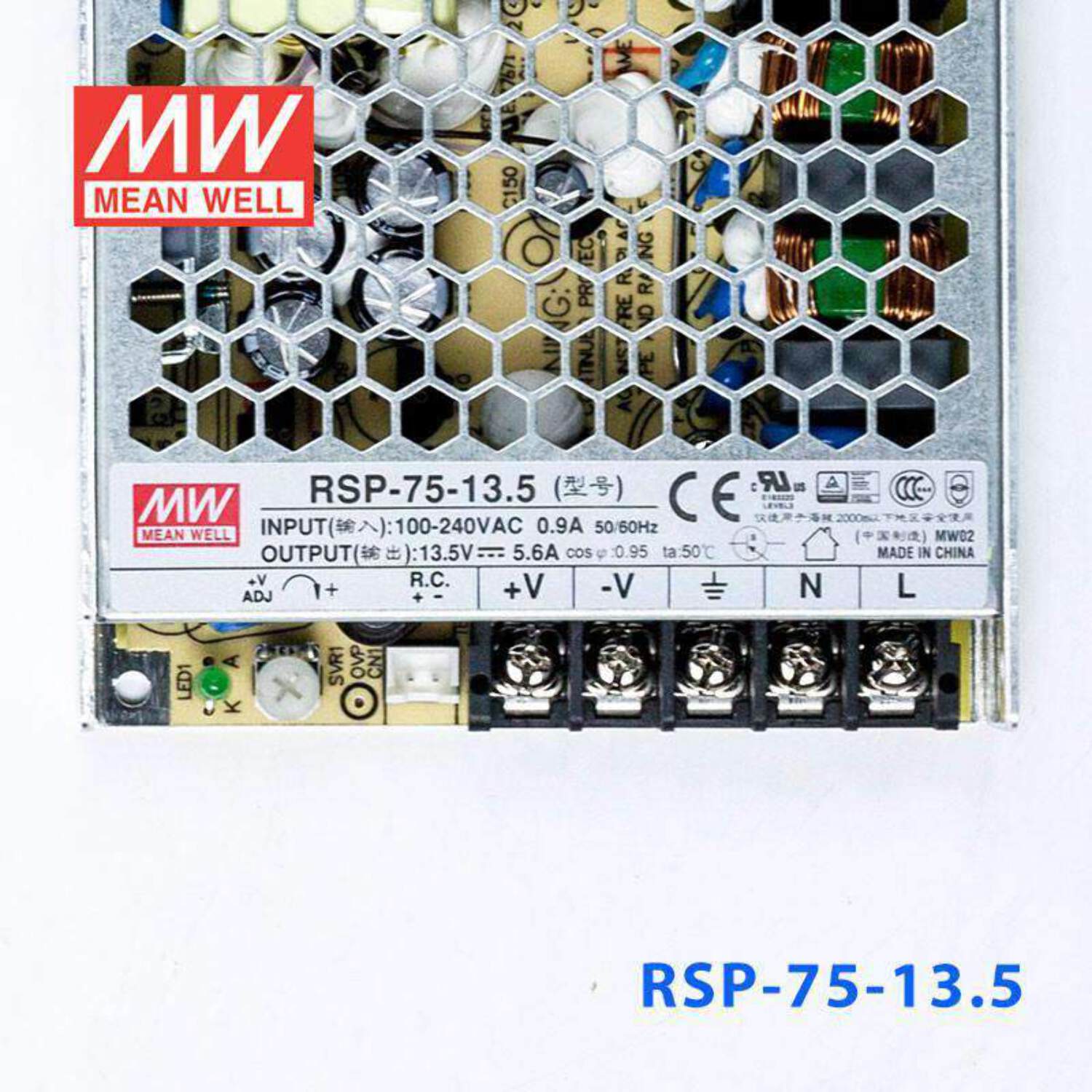

Mean Well RSP-75-13.5 Power Supply 75W 13.5V

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>Built-in active PFC function</td></tr><tr><td>Built-in constant current limiting circuit</td></tr><tr><td>Protections:Short circuit/ Overload / Over voltage</td></tr><tr><td>Cooling by free air convection</td></tr><tr><td>1U low profile 30mm</td></tr><tr><td>Remote ON-OFF control</td></tr><tr><td>LED indicator for power on</td></tr><tr><td>100% full load burn-in test</td></tr><tr><td>3 years warranty</td></tr></tbody></table><br><em></em> General Specification&nbsp;<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>85~264VAC ; 120~370VDC</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 35A at 230VAC</td></tr><tr><td><strong>Overload protection</strong></td><td>105%~135% Constant current limiting, auto-recovery</td></tr><tr><td><strong>Over temperature protection</strong></td><td>Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Setup, rise, hold up time</strong></td><td>600ms,30ms,16ms at full load</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-25~+70ºC(refer to output derating curve)</td></tr><tr><td><strong>Safety standards</strong></td><td>UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved</td></tr><tr><td><strong>EMC standards</strong></td><td><p>EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024</p></td></tr><tr><td><strong>Connection </strong></td><td>5P/9.5mm pitch terminal block</td></tr><tr><td><strong>Dimension (LxWxH) (mm)</strong></td><td>159x97x 30mm</td></tr><tr><td><strong>Packing</strong></td><td>30pcs / 14.2kg</td></tr></tbody></table>
